RevX Ozone Water Filtration System

The RevX Ozone Water Filtration System is a purpose-built water circulation, filtration, and sanitation system designed specifically for cold plunges, ice baths, and cold-water immersion setups. Combining high-flow circulation, 20-micron filtration, and an Ambohr ozone generator in a rugged steel cabinet, the system provides a convenient way to help maintain cleaner, clearer plunge water.

A powerful commercial-grade water pump delivers up to 1,700 GPH of circulation and is designed for continuous 24/7/365 operation. The included Ambohr SPA-124 ozone generator works with a venturi injector as an additional water sanitation component. According to the supplied manufacturer guidance, the ozone generator is the only component recommended for connection to a timer, with operation for approximately 1 hour per 24-hour period.

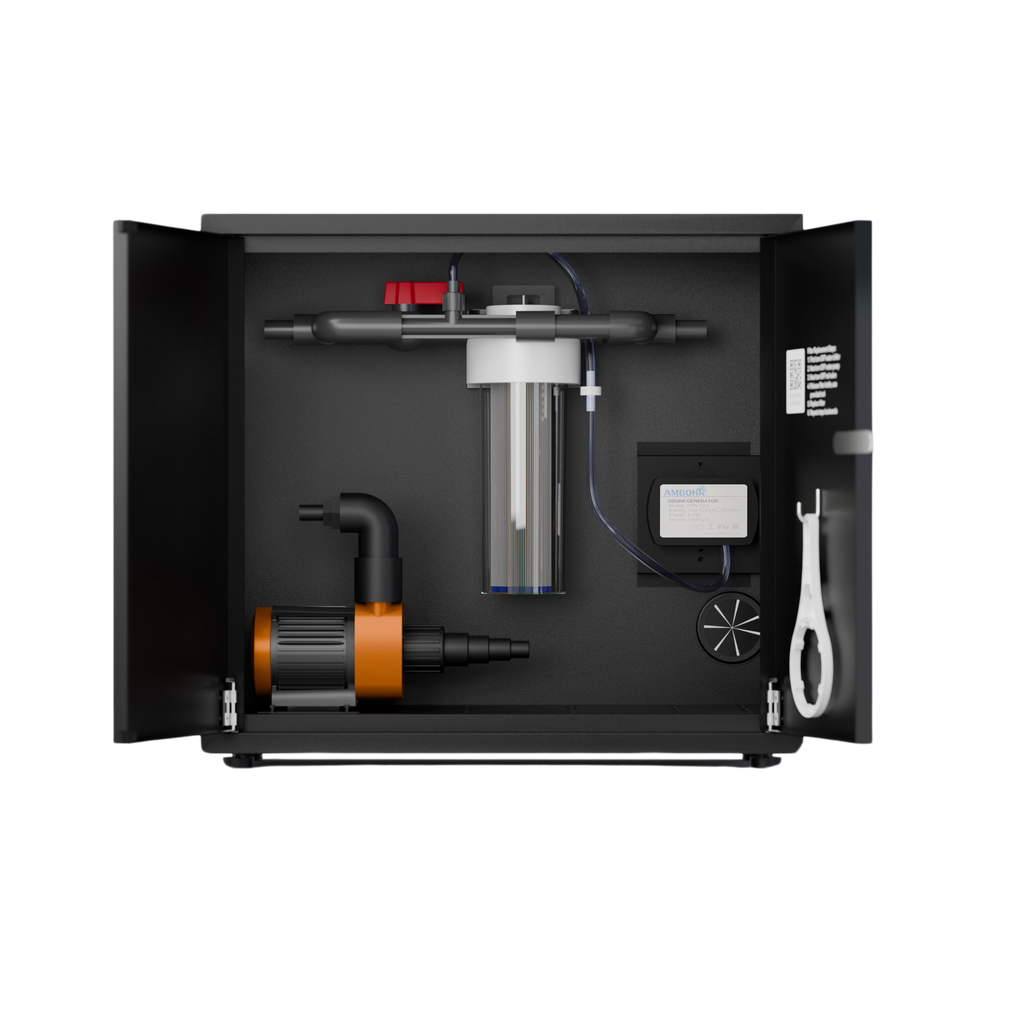

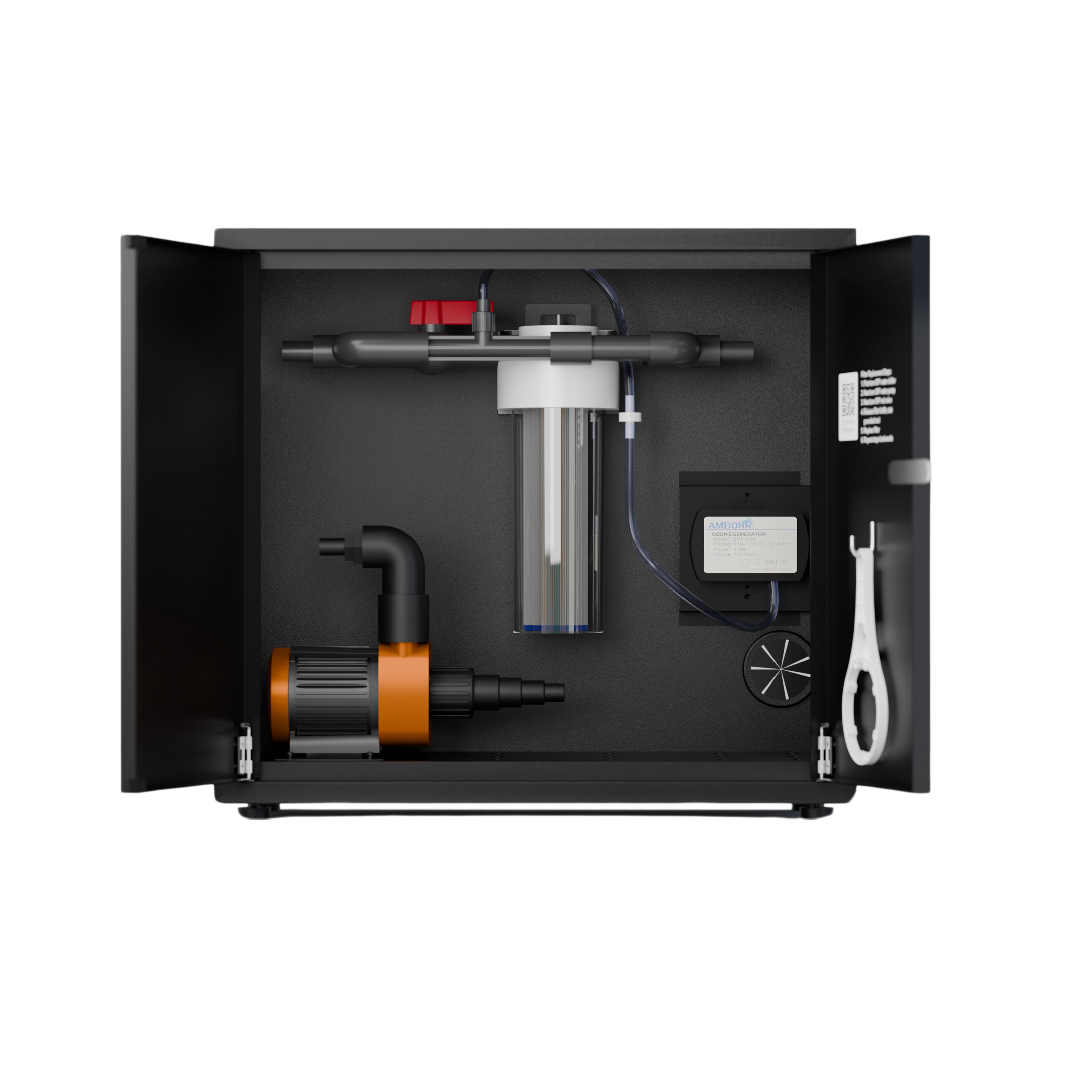

The system arrives pre-assembled with quality plumbing components, an easy-access clear filter housing, built-in shutoff valve, and convenient slip-on barbed hose connections. Housed inside a rugged matte-black steel cabinet, the RevX system is designed as a straightforward plug-and-play solution for compatible cold-plunge installations.

Specifications

• Brand: RevX Wellness™

• Product: RevX Ozone Water Filtration System

• Application: Cold plunges, cold baths, and ice baths

• Water Pump: Commercial-grade submersible/inline pump

• Pump Flow Rating: Up to 1,700 GPH

• Pump Power: 110V / 60Hz

• Ozone Generator: Ambohr SPA-124

• Ozone System: Ozone generator with venturi injector

• Ozone Generator Power: 110V / 60Hz

• Filter: 20-micron water filter

• Filter Housing: Clear filter holder for convenient filter access

• Plumbing: ¾-inch PVC plumbing components

• Connections: Slip-on barbed hose fitting adapters for inlet and outlet

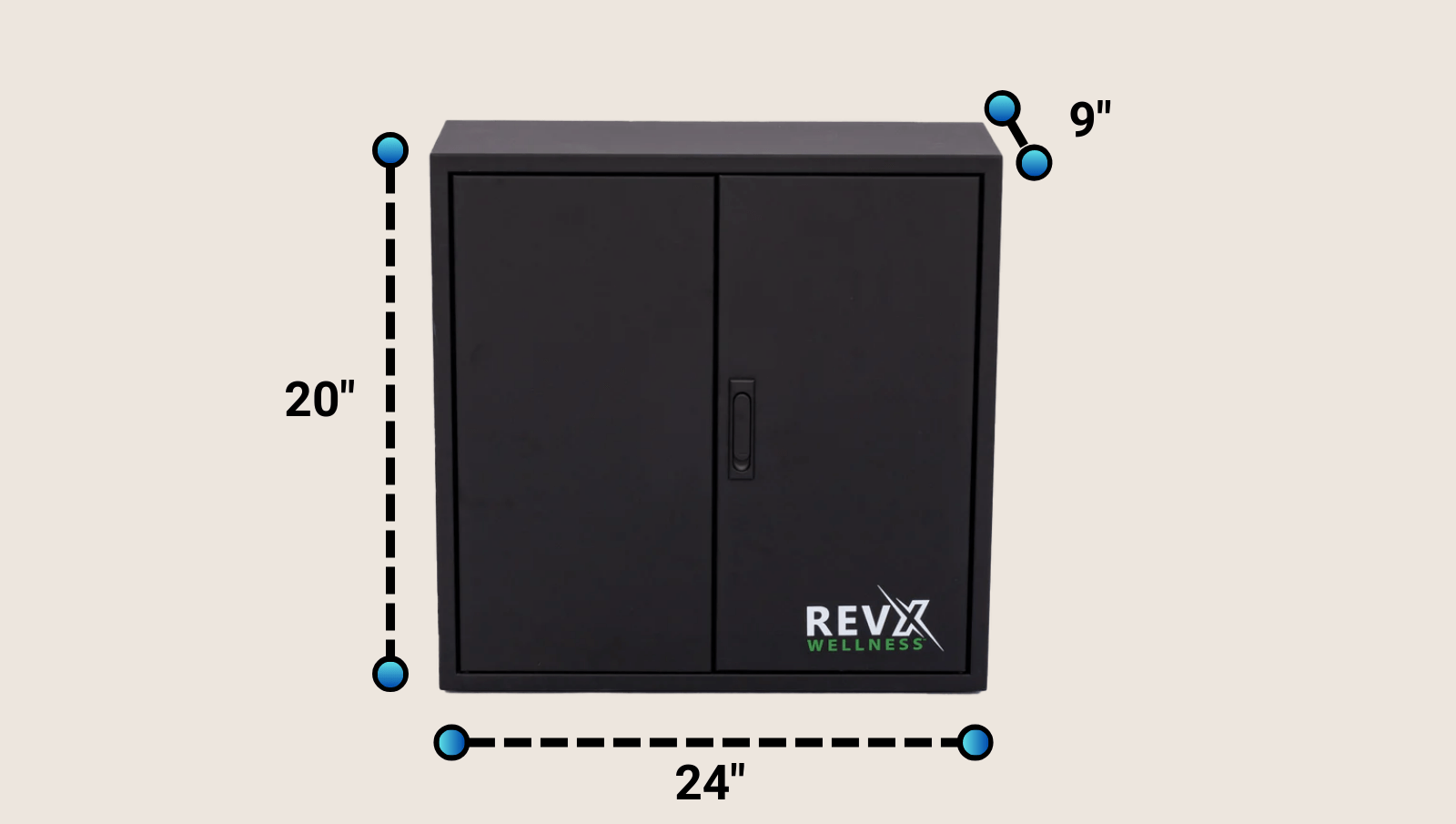

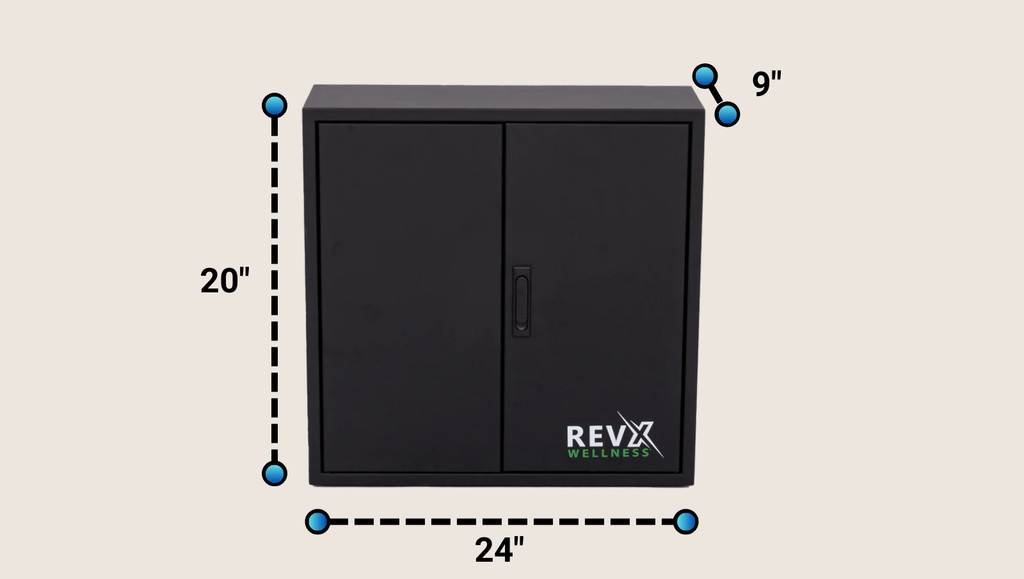

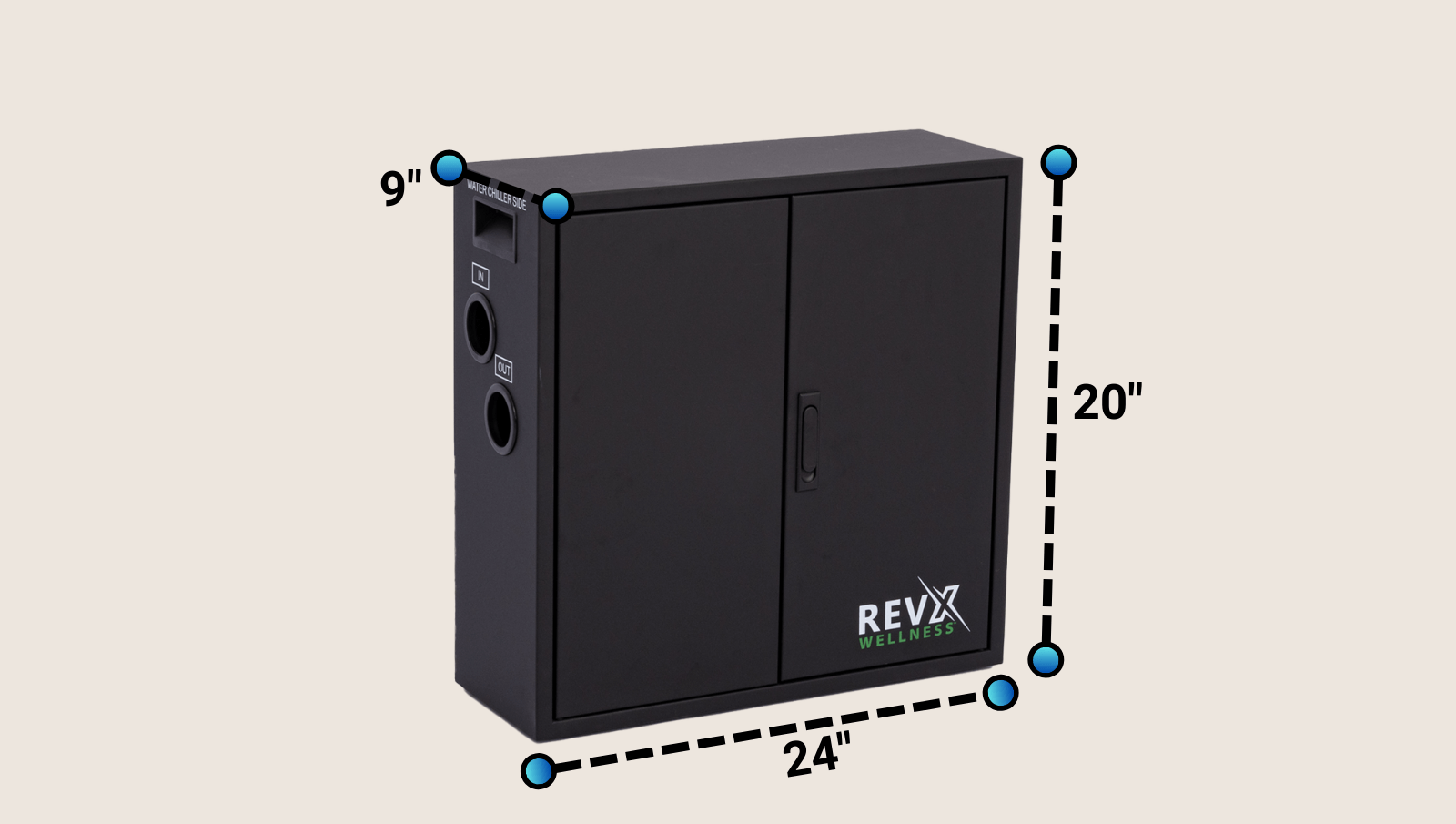

• Cabinet: Rugged all-steel construction with matte-black finish

• Valve: Built-in shutoff valve

• Installation: Pre-assembled plug-and-play design

• Environment: Indoor/outdoor use

• Design: Designed in California

• Manufacturing: Manufactured in Asia

Features

• Designed for Cold Plunges: Purpose-built for water circulation, filtration, and ozone sanitation in compatible cold plunges, ice baths, and cold-water immersion setups

• High-Flow Water Circulation: Powerful pump delivers up to 1,700 GPH to continuously circulate plunge water through the system

• Continuous-Duty Pump: The commercial-grade water pump is designed for continuous 24/7/365 circulation

• Ozone Sanitation: An Ambohr SPA-124 ozone generator with venturi injector provides an additional water sanitation component within the system

• 20-Micron Filtration: Replaceable filtration helps capture suspended particles as water circulates through the system

• Easy-Access Filter Housing: Clear filter housing simplifies visual inspection and access when the filter needs to be changed

• Rugged Steel Cabinet: All-steel construction with a matte-black finish protects and organizes the system components while providing a clean, professional appearance

• Built-In Shutoff Valve: Integrated valve provides convenient control of water flow when servicing or operating the system

• Convenient Hose Connections: Slip-on barbed inlet and outlet adapters simplify connection to compatible cold-plunge plumbing

• Pre-Assembled Design: Plumbing and major system components arrive pre-assembled to simplify setup

• Indoor & Outdoor Use: Designed for use with compatible indoor or outdoor cold-plunge installations

Included

• Matte-black steel cabinet

• Ambohr SPA-124 ozone generator with venturi injector

• 110V / 60Hz water pump

• Clear water filter housing

• 20-micron filter

• Shutoff valve

• Pre-assembled plumbing components

• Inlet and outlet hose fitting adapters

Recommended Operation

• Water Pump: Designed for continuous water circulation, 24 hours a day, 7 days a week

• Ozone Generator: Based on the supplied manufacturer guidance, connect the ozone generator to a timer and operate it for approximately 1 hour per 24-hour period

• Filter: Inspect the filter regularly and replace it as needed according to water conditions and manufacturer recommendations

Warranty

• Standard Warranty: 1 year

Product Use Notice

This product is designed for general wellness, relaxation, and everyday comfort. It is intended for personal, non-medical use in home or similar environments. Individual experiences may vary. Always follow the manufacturer’s instructions and recommended usage guidelines.
